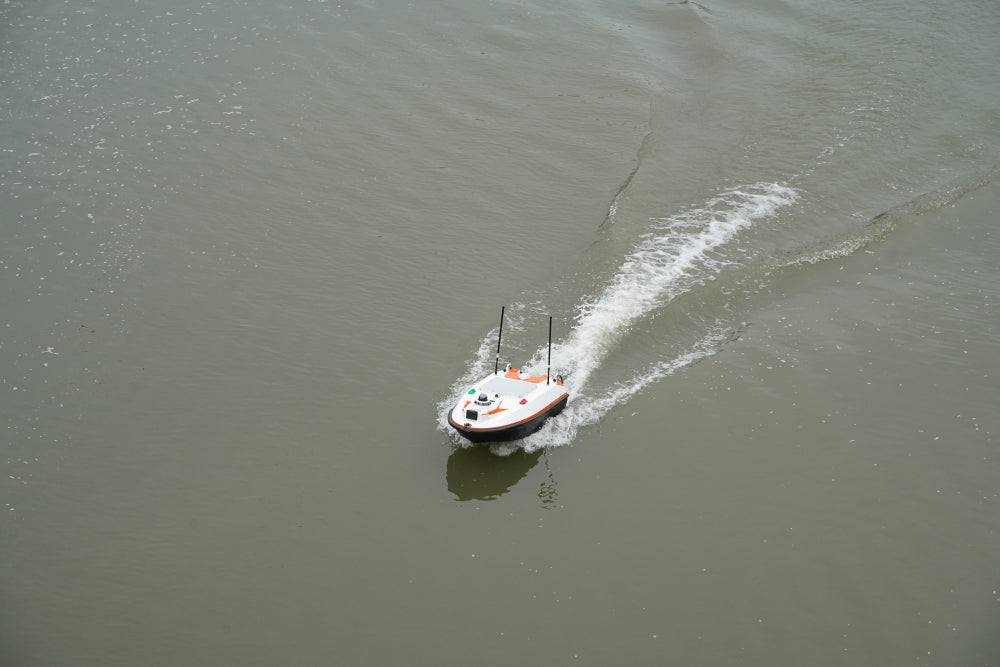

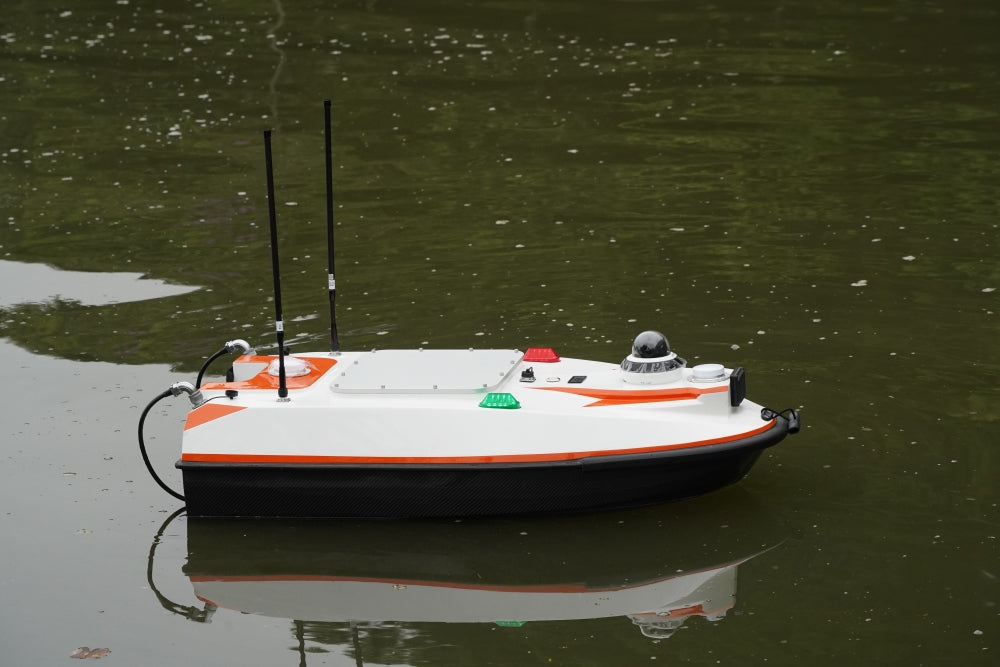

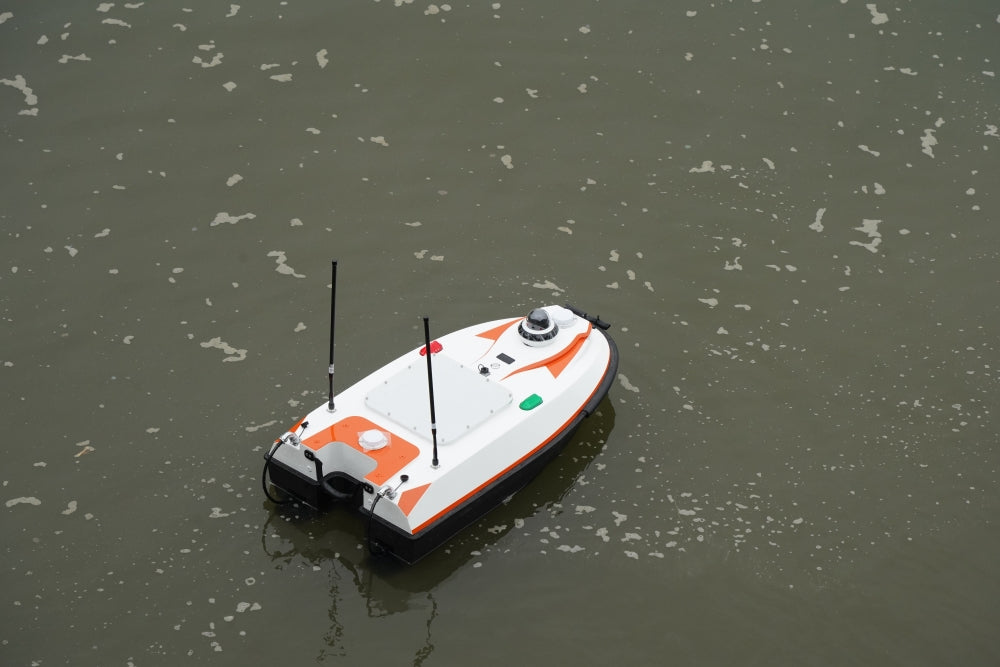

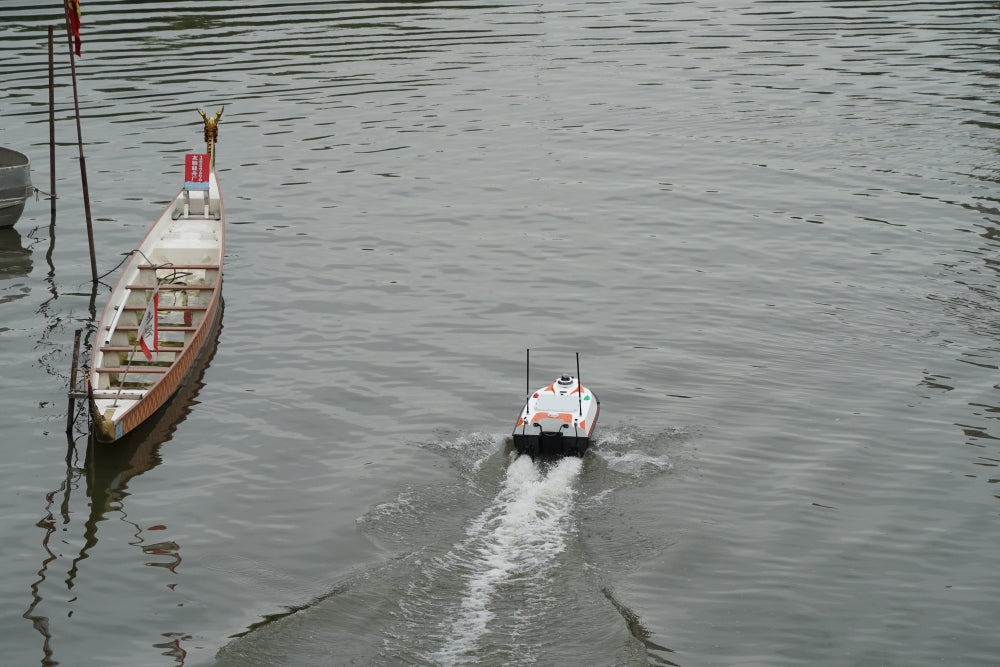

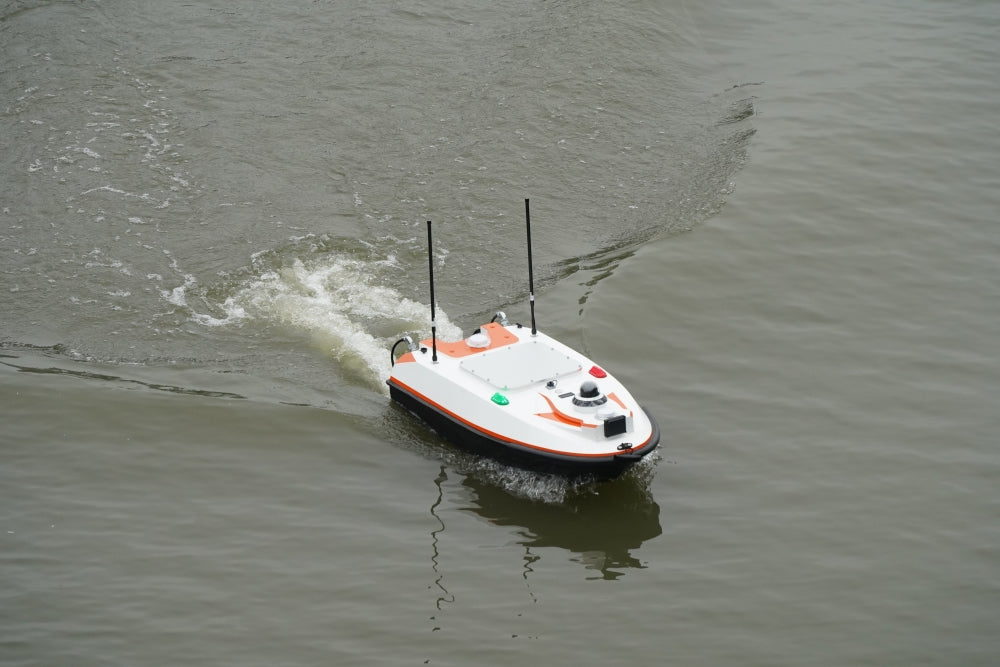

The CSIN-S120 Small Multi-Function Unmanned Surface Vehicle is a compact survey boat designed for water quality monitoring, depth measurement, underwater topographic survey, and reservoir capacity measurement in lakes, rivers, reservoirs, and similar environments. Featuring an M-shaped hull design, a body length of approximately 1.2 meters, and a lightweight portable structure, it supports single-operator deployment and field operation.
Equipped with a self-developed autonomous navigation control system, the CSIN-S120 supports autonomous cruising and automatic obstacle avoidance for safer and more efficient water operations. It can be integrated with a variety of professional instruments, including ADCP current profilers, water quality analyzers, echo sounders, and side-scan sonar systems, making it a versatile solution for diversified water survey and monitoring tasks.
Product Overview
The CSIN-S120 Small Multi-Function Unmanned Surface Vehicle is a compact and portable unmanned survey boat developed for use in lakes, rivers, reservoirs, and other inland water environments. It is designed for a wide range of applications, including water quality monitoring, water depth measurement, underwater terrain survey, and reservoir capacity measurement.
The hull adopts an M-shaped bottom design, which helps improve stability and operational performance on water. With a hull length of approximately 1.2 meters and a lightweight design, the CSIN-S120 is easy to transport and can be operated by a single person, making it especially suitable for field survey work and mobile deployment.
Powered by a self-developed autonomous navigation control system, the unmanned boat can perform autonomous cruising and automatic obstacle avoidance, improving both efficiency and safety during water operations. The obstacle avoidance function can be turned on or off as needed, and the avoidance distance can also be adjusted according to mission requirements.
The CSIN-S120 can be equipped with multiple professional payloads such as cameras, ADCP current profilers, echo sounders, water samplers, online water quality monitoring instruments, and other survey equipment. This makes it suitable for diversified tasks such as mobile water quality monitoring, bathymetric surveying, reservoir storage capacity analysis, underwater terrain detection, fish school detection, and unmanned patrol with real-time video transmission.
Combining compact size, strong payload compatibility, and intelligent navigation, the CSIN-S120 is an efficient solution for hydrographic survey, environmental monitoring, and smart water management applications.
Main Features
Compact and Portable Design
- Small hull size with approximately 1.2 m length for easy transport and deployment.
- Lightweight structure supports single-person operation in field environments.
- Suitable for lakes, rivers, reservoirs, and similar inland water areas.
Multi-Function Water Survey Capability
- Supports mobile water quality monitoring and water depth measurement.
- Can be used for reservoir capacity measurement and underwater terrain survey.
- Also suitable for fish school detection and other specialized water investigations.
Autonomous Navigation and Obstacle Avoidance
- Equipped with a self-developed autonomous navigation control system.
- Supports autonomous cruising for efficient unmanned operations.
- Obstacle avoidance can be enabled or disabled, and the avoidance distance can be adjusted.
Real-Time Patrol and Monitoring
- Can perform unmanned patrol missions in target water areas.
- Supports real-time video transmission for remote observation.
- Improves monitoring efficiency and reduces manual workload.
Wide Payload Compatibility
- Can carry professional instruments such as ADCP, echo sounder, and water quality analyzer.
- Supports cameras, water samplers, and online water quality monitoring devices.
- Flexible payload integration for diverse survey and monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Small Multi-Function Unmanned Surface Vehicle |
| Model | CSIN-S120 |
| Material | High-strength carbon fiber composite material |
| Dimensions (L × W × H) | 1200 × 600 × 400 mm |
| Endurance | > 2 hours (customizable) |
| Maximum Speed | ≥ 4 m/s |
| Navigation System | Supports BeiDou navigation system |
| Payload Capacity | ≥ 20 kg |
| Remote Control Range | ≥ 2 km |
| Number of Thruster Sets | 2 sets |
| Hull Weight | ≤ 30 kg |
| Compatible Payloads | Camera, ADCP, echo sounder, water sampler, online water quality monitor, etc. |
Applications
- Water quality monitoring in lakes, rivers, and reservoirs
- Bathymetric survey and water depth measurement
- Reservoir capacity measurement and storage analysis
- Underwater terrain mapping and fish school detection
- Unmanned water patrol with real-time video transmission
